10 impellers paddle wheel aerator


Product Parameters

Model

HP

Voltage
(V)

Frequency

Impellers

AMP(A)

Power Efficiency (kg/kw.h)

Aerobic capacity (kg/h)



Impeller    Speed (Rpm)

SC-0.75

1

220V-440V

50/60HZ

2

1.2

≥1.25

≥1.1

106

SC-1.5

2

220V-440V

50/60HZ

4

2.5

≥1.25

≥1.9

106

SC-1.5

2

380V -440V

50/60HZ

6

2.8

≥1.5

≥3.8

106

SC-2.2

3

380V-440V

50/60HZ

6

2.8

≥1.5

≥3.8

106

SC-2.2

3

380V-440V

50/60HZ

8

3

≥1.5

≥4.3

106

SC-3.0

4

380V-440V

50/60HZ

10

3

≥1.5

≥5

106

SC-3.0

4

380V-440V

50/60HZ

12

3.2

≥1.5

≥5.5

106



Features

Adopt new patent water-breaking impeller. Higher and wider water splash with much faster RPM for super high aeration.

Save machine buying cost and power consumption due to the professional water-breaking and parabola design.

Adjustable impeller.

Synthetic aluminum / magnesium electric motor, heat dissipation is faster at least by 30%.

#304 L type/ Square type/ half circle stainless steel frame .

#304, 25.0mm stainless steel shaft.

New high-density polyethylene floaters and motor cover. High quality parts for long lasting performance.

Wenling Seafull Machinery Co., Ltd are leading 10 impellers paddle wheel aerator suppliers in China, these products are widely used in industry, agriculture, fisheries and other fields. We also export wholesale 10 impellers paddle wheel aerator which is CE certified. Welcome to visit our factory.

Parts

PARTS:

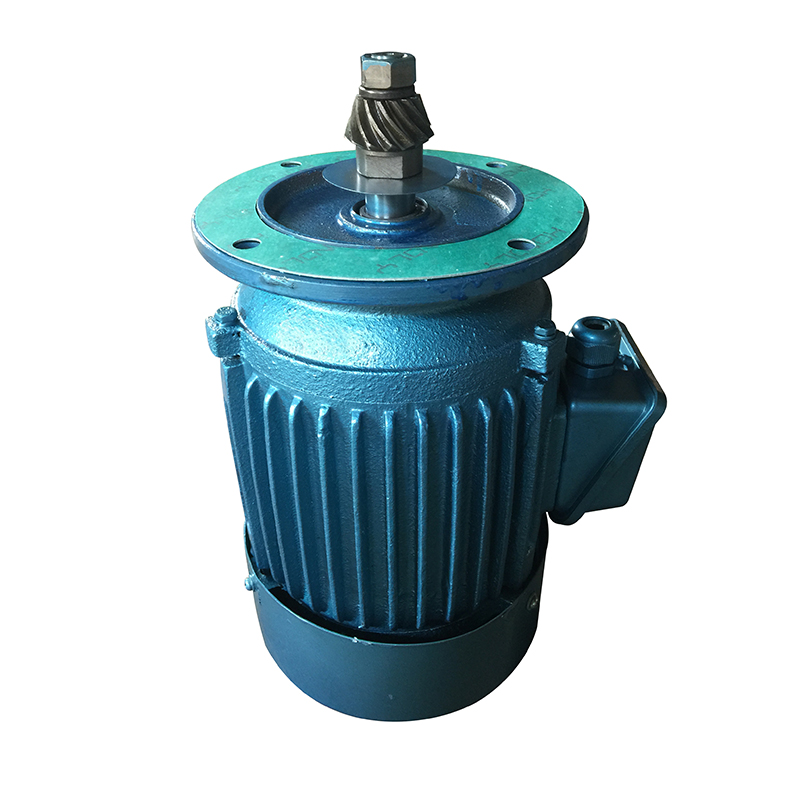

High Quality Efficiency Motor:

  1. 1.Expertised design for Aquaculture Industry.
  2. 2.The unique aerator motor made under "ISO9001"and "ISO14001" System.
  3. 3.Top quality, Strict Q.C. to ensure best quality and performance.
  4. CE certificate ,Cast iron body that could withstand high temperature and prolong the lifetime.
  5. Adopt with Cold-rolled silicon steel, 100%pure copper wire.

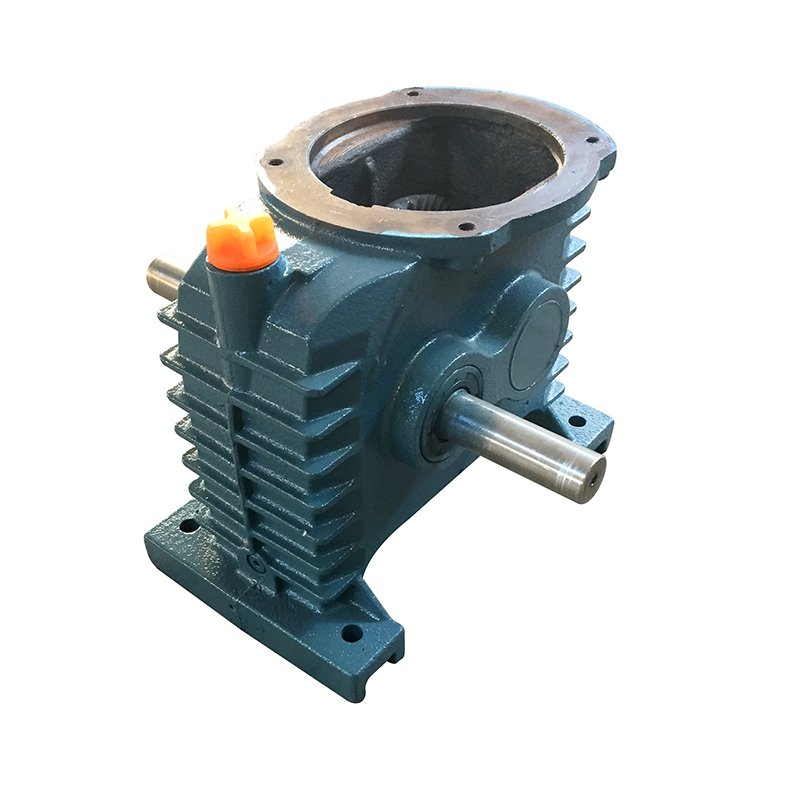

Bevel Type Heavy-duty Reducer:

  1. 1.Our Bevel type Gear made from T20 grade Cast Steel, this gear creat low sound and save Electricity.
  2. 2.Low resistance bevel reducer ensure best quality and low power consumption.
  3. 2.2 liters of #50 gear oil.

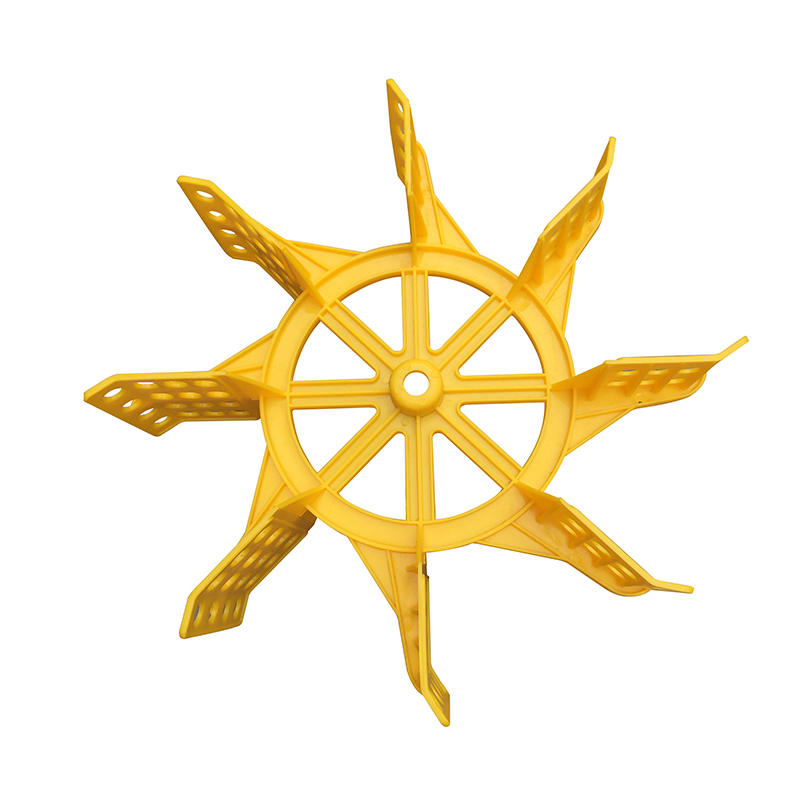

One-piece Blow Molded Impeller:

  1. Replaceable paddle, lower maintenance cost.
  2. Toughness against corrosion and sunburn resistance.
  3. Professional designed paddle and best blade angle, substantial water splash, strong water current, and high oxygenation performance.
  4. The "Support or Anchor Part" of the blade on the rim is more strengthened and unique designed.

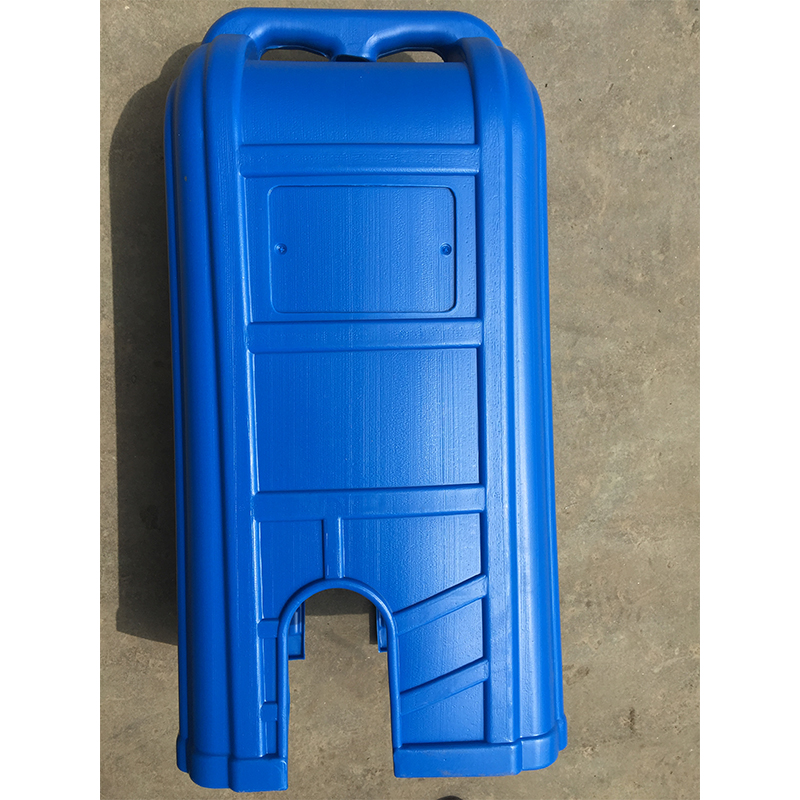

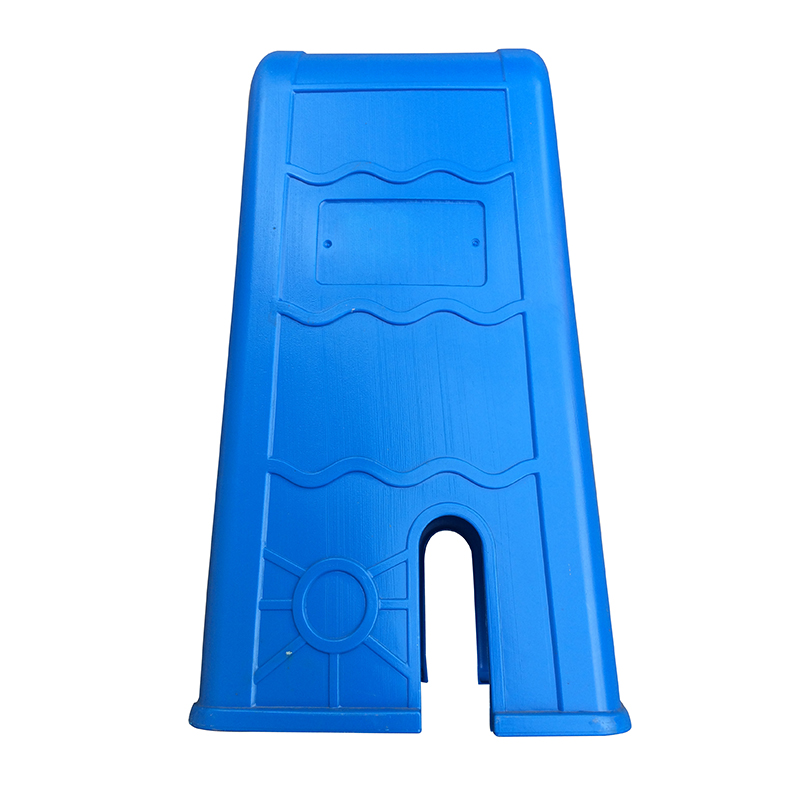

HDPE Motor Cover:

One-piece blow molded virgin HDPE motor cover for water protection.

Allow better heat dissipation of motor and easy for delivery.

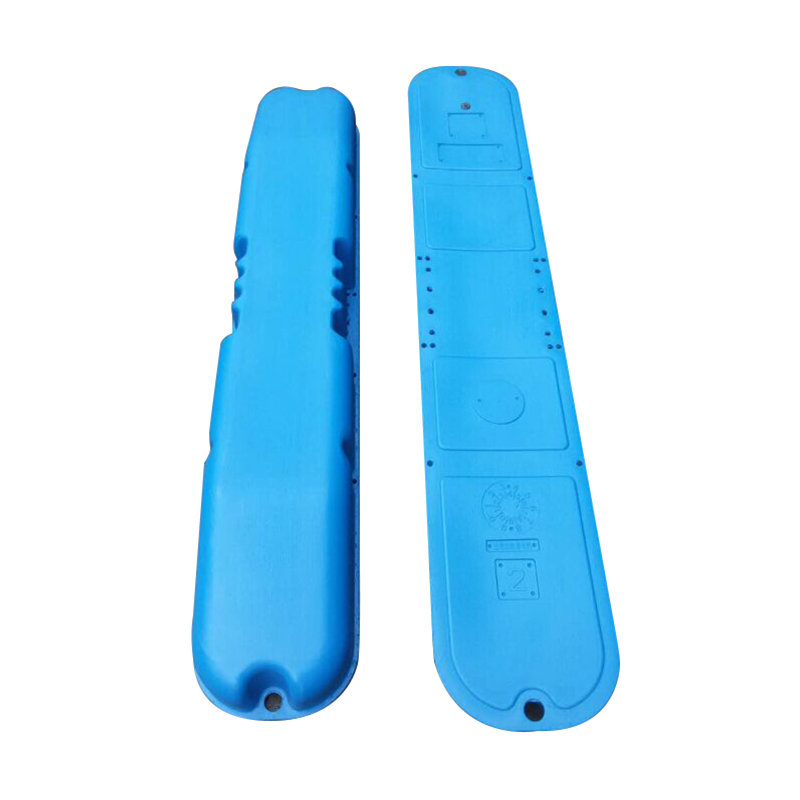

HDPE Float:

  1. One-piece blow molded of reinforced HDPE float that could resist against acid-alkalinity and sun exposure,crack-free and no water seeping problem.
  2. Made of 100% new HDPE material to optimize full ductility.
  3. Easy for delivery and installation.
  4. It never break even if throwing it down to the ground from the 3th floor.

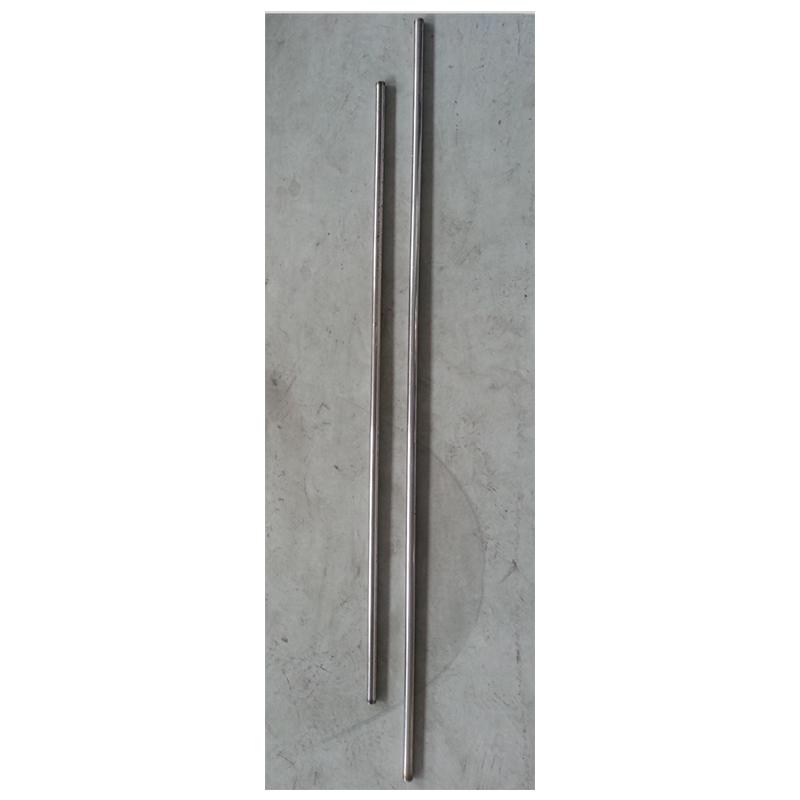

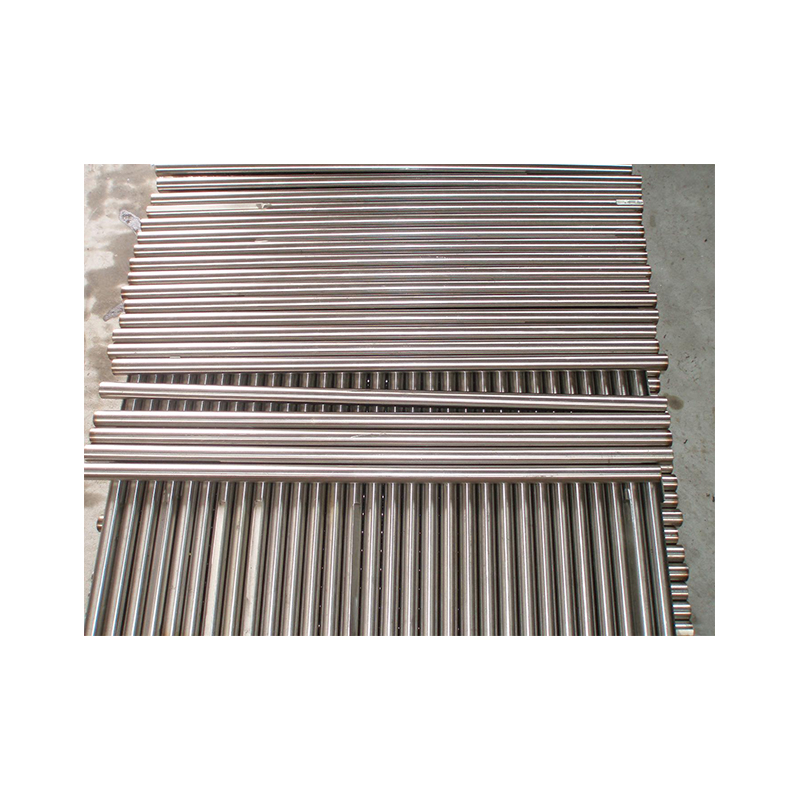

Drive Shaft

  1. Made of # 304 stainless steel material.
  2. Durable and Never Rust.

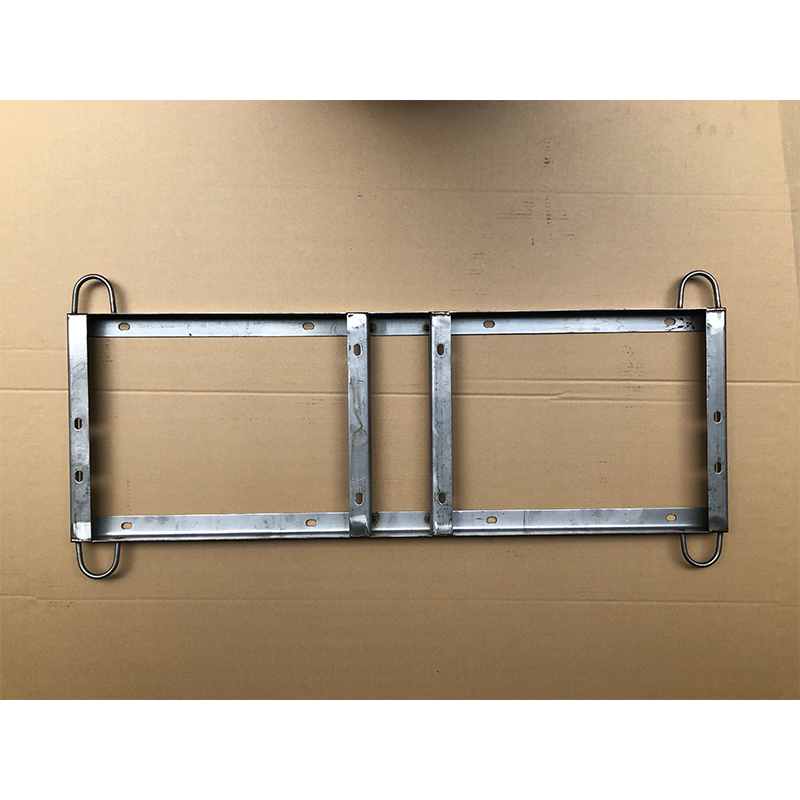

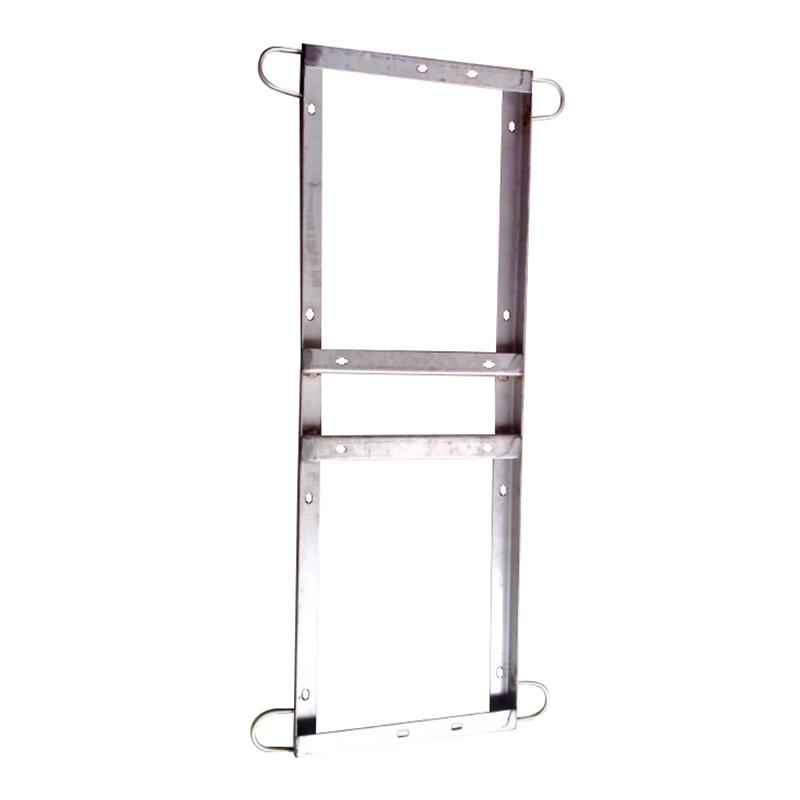

#304 Stainless Steel Frames

      1.Made of # 304 stainless steel material.
      2.Sturdy and without deformation.
      3.High durability.

Movable Joint

Made of 304# stainless steel or Cast Iron and Rubber

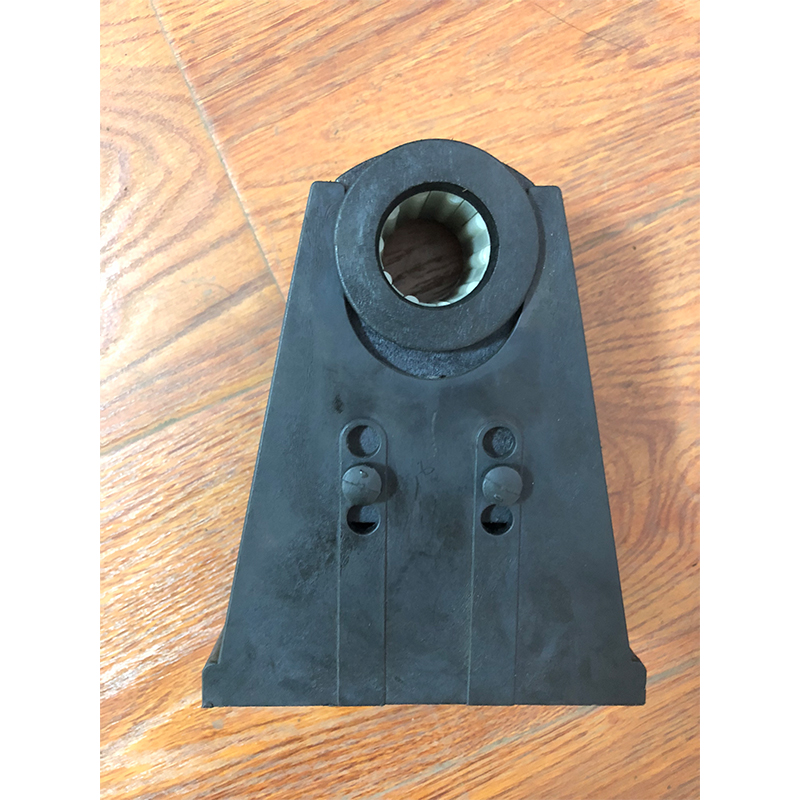

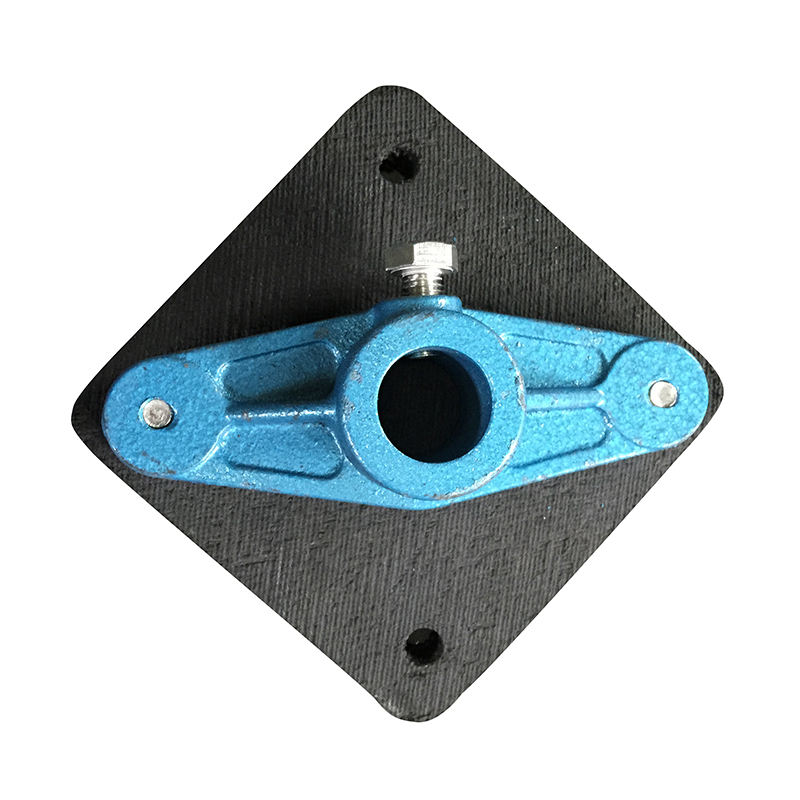

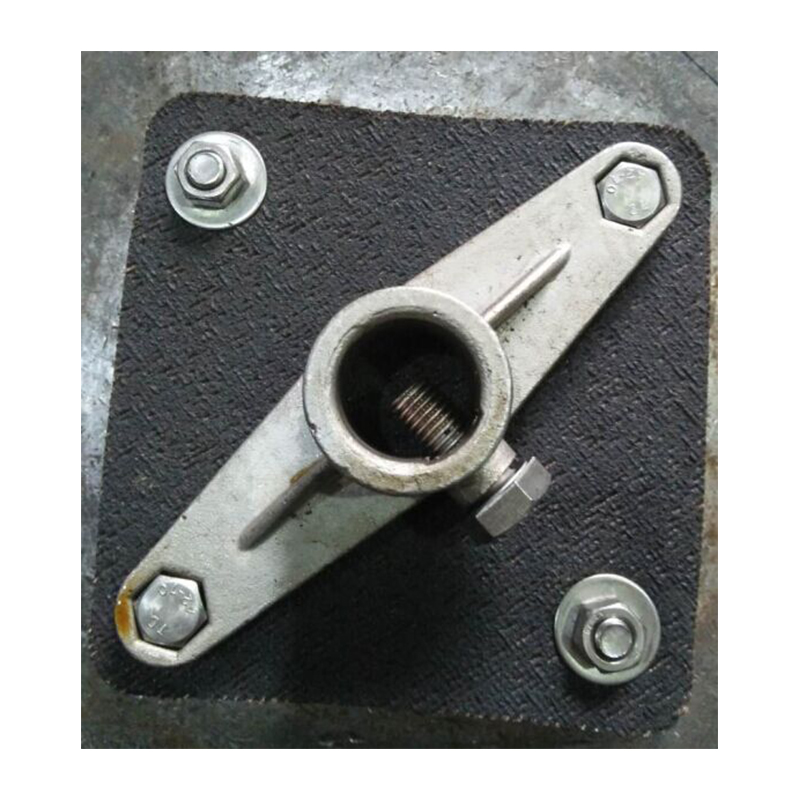

Block-bearing Tripod

  1. Special synthetic rubber bush of block-bearing could withstand higher temperature and resistance against continuous friction.
  2. Made of PE or Nylon



Wenling Seafull Machinery Co., Ltd.

We are a professional modern enterprise integrating design, development, production and sales. As one of professional Aquaculture fish and shrimp farming aerator manufacturer, factory in China, we manufacture pond Aerator, Side Channel Blower, Feeding machines and Aeration tube. Our company has an excellent technical management team, with high-quality pre-sales technical support and service capabilities. Products are widely used in industry, agriculture, pond fisheries and other fields.
